Power Outer Mirror Installation Note

  1. If a wiring harness is mistakenly routed when installing a power outer mirror, it will interfere with the front door glass when opening/closing the front door glass, and could result in an open circuit. When routing the wiring harness, route it behind the glass guide.

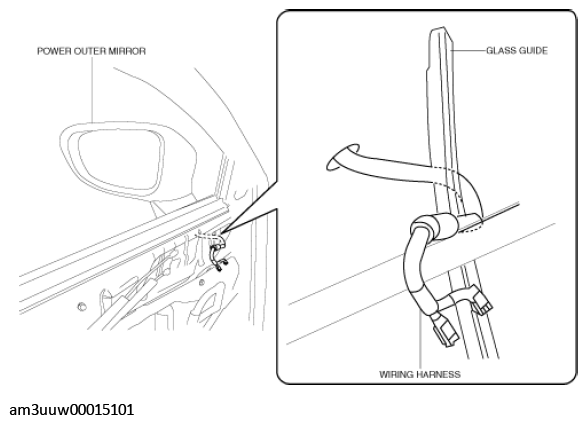

Fig 1: Power Outer Mirror Installation
G11449044Courtesy of MAZDA MOTORS CORP.
