Exhaust System Insulator Removal/Installation

  1. Remove the shift.
  2. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
  3. Remove the power plant frame. (See POWER PLANT FRAME REMOVAL/INSTALLATION [SJ6A-EL] .) (See POWER PLANT FRAME REMOVAL [M66M-D] .) (See POWER PLANT FRAME INSTALLATION [M66M-D] .)
  4. Remove the exhaust system insulator in the order shown in the figure.
  5. Install in the reverse order of removal.

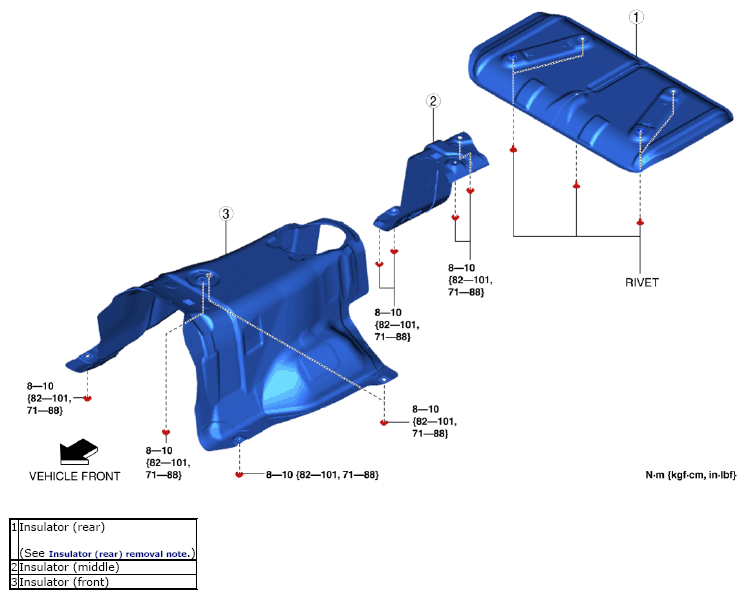

    Fig 1: Identifying Exhaust Front, Middle And Rear Insulator With Torque Specifications
    G10951784Courtesy of MAZDA MOTORS CORP.
