Exhaust Manifold Insulator Installation Note

CAUTION:

Since the quality of the material of exhaust manifold insulator is aluminum material, it is very easy to change. Therefore, it takes care that there is no modification of exhaust manifold insulator at the time of attachment for dealing with it.

Install the exhaust manifold insulator.
Temporarily tighten the bolt as shown in the figure.

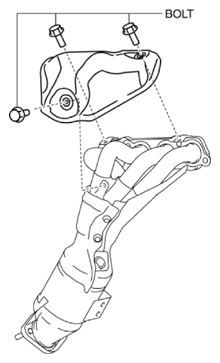

Fig 1: Identifying Exhaust Manifold Insulator Bolts
Courtesy of MAZDA MOTORS CORP.
Tighten the bolt as shown in the figure.

Fig 2: Identifying Exhaust Manifold Insulator Bolts
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
Check that there is no contact with an exhaust manifold and exhaust manifold insulator.
