Buckle Switch Inspection

Switch the ignition off.
Disconnect the negative battery cable and wait for 1 min or more . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the seat. (See SEAT REMOVAL/INSTALLATION .)
Remove the buckle. (See BUCKLE REMOVAL/INSTALLATION .)
Inspect for continuity between the buckle switch terminals using a tester.

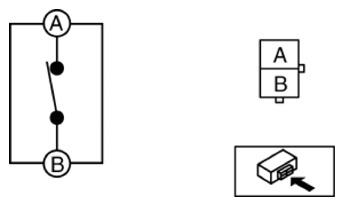

Fig 1: Buckle Switch Terminals Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the buckle. (See BUCKLE REMOVAL/INSTALLATION .)

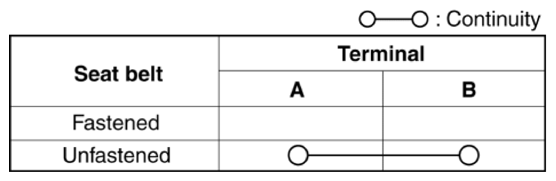

Fig 2: Buckle Switch Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.
