MX-5 Miata Club, Standard Trans
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
On-Board Diagnostics (Dynamic Stability Control (DSC))
>>
System Wiring Diagram
System Wiring Diagram

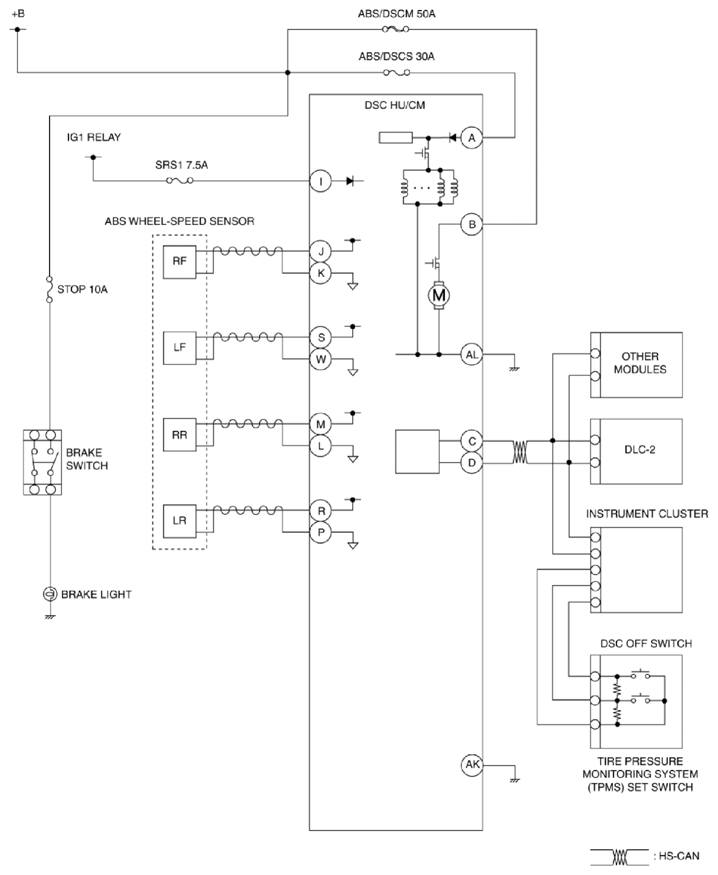

Fig 1: DSC HU/CM System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
