DTC C1109-64: DSC Off Switch: Notes

DTC	C1109:64	DSC OFF switch
DETECTION CONDITION		DSC OFF is switched ON continuously for 10 s or more is detected.
FAIL-SAFE FUNCTION		Refer to "Fail-safe function table". (See DTC TABLE .)

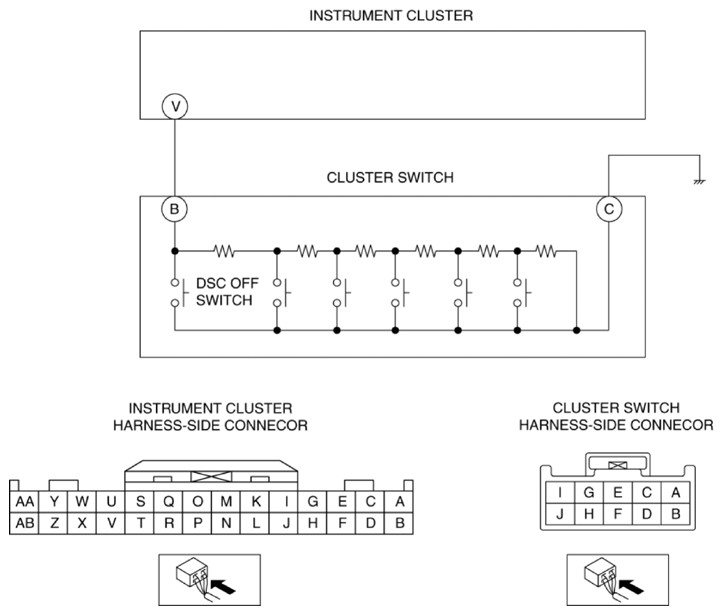

POSSIBLE CAUSE		The DSC OFF switch is pressed and held for 10 s or more Short to ground circuit in wiring harness between instrument cluster terminal V and cluster switch terminal B DSC OFF switch malfunction Poor connection at each connector DSC HU/CM malfunction
