TWC Installation Note

  1. Remove the tunnel member temporarily.

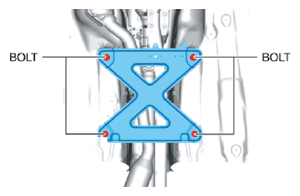

    Fig 1: Removing Tunnel Member
    G10952986Courtesy of MAZDA MOTORS CORP.
  2. Install the TWC to the exhaust manifold (WU-TWC). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
