| DETECTION CONDITION |
M position switch signal error
- Vehicle condition: TCM communication normal during engine rotation
- Status: Detects that M position switch is on in P, R or N position
- Period: Confirmed continuously for 2 s
Up switch malfunction or down switch signal error
- Vehicle condition: TCM communication normal during engine rotation
- Status: Detects that up or down switch is on while M position switch is off
- Period: Confirmed continuously for 10 s
|
| FAIL-SAFE FUNCTION |
M position switch signal error
- Inhibits the manual shift control.
- Inhibits manual shifting using the up or down switch of the selector lever.
- Inhibits direct mode.
Up switch malfunction or down switch signal error
- Inhibits manual shifting using the up or down switch of the selector lever.
|
| POSSIBLE CAUSE |
M position switch signal error
- Instrument cluster DTC is stored.
- M position switch malfunction

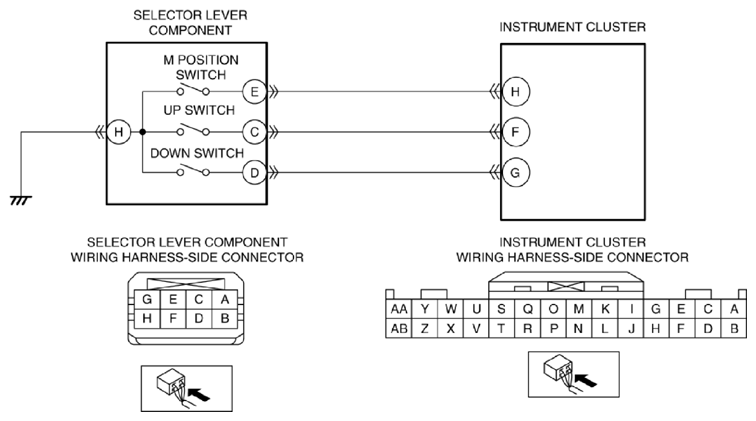

- Short to power supply in wiring harness between selector lever component terminal E and instrument cluster terminal H
- Short to ground in wiring harness between selector lever component terminal E and instrument cluster terminal H
- Open circuit in wiring harness between selector lever component terminal E and instrument cluster terminal H
- Open circuit in wiring harness between selector lever component terminal H and body ground
- TCM connector or terminal malfunction
- Selector lever component connector or terminal malfunction
- TCM malfunction
Up switch malfunction or down switch signal error
- Instrument cluster DTC is stored.
- Up switch malfunction
- Down switch malfunction.
- Short to power supply in wiring harness between selector lever component terminal C and instrument cluster terminal F
- Short to power supply in wiring harness between selector lever component terminal D and instrument cluster terminal G
- Short to ground in wiring harness between selector lever component terminal C and instrument cluster terminal F
- Short to ground in wiring harness between selector lever component terminal D and instrument cluster terminal G
- Open circuit in wiring harness between selector lever component terminal C and instrument cluster terminal F
- Open circuit in wiring harness between selector lever component terminal D and instrument cluster terminal G
- Open circuit in wiring harness between selector lever component terminal H and body ground
- TCM connector or terminal malfunction
- Selector lever component connector or terminal malfunction
- Instrument cluster malfunction
|
|
|
