DTC P0708-00: Tr Switch- Open Circuit: Notes

DTC P0708:00	TR switch: Open circuit
DETECTION CONDITION	Condition: TCM normal during engine rotation Status: Detects no output of TR switch at vehicle speed of 30 km/h {19 mph} or higher Period: Confirmed 1 time in 30 s or more
FAIL-SAFE FUNCTION	When multiple position contact points are on, the selected position is determined by the following order of priority. D>R>N (P) When all of the position contact points are off, the D position is determined. Inhibits learning control. Inhibits direct mode. Inhibits AAS mode. Inhibits the neutral control. Inhibits the reverse control.

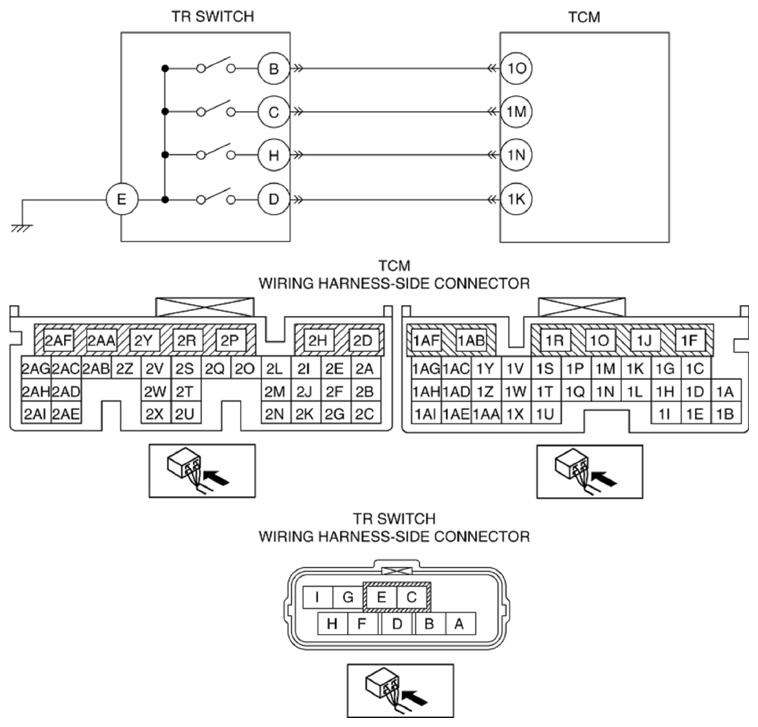

POSSIBLE CAUSE	TCM connector or terminal malfunction TR switch connector or terminal malfunction TR switch malfunction TR switch misadjustment TR switch malfunction Open circuit in wiring harness between TR switch terminal B and TCM terminal 1O Open circuit in wiring harness between TR switch terminal C and TCM terminal 1M Open circuit in wiring harness between TR switch terminal H and TCM terminal 1N Open circuit in wiring harness between TR switch terminal D and TCM terminal 1K Open circuit in wiring harness between TR switch terminal E and body ground TCM malfunction
