Continuity Inspection
NOTE:
- The up position switch is built into the selector lever component.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Selector lever knob (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
- Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)
- Disconnect the selector lever component connector.

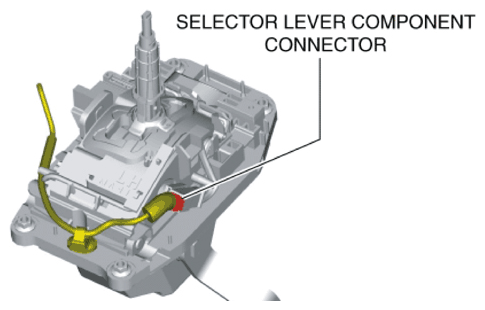

- Verify that the continuity between selector lever component terminals C and H.
Courtesy of MAZDA MOTORS CORP.
- If not as verified, replace the selector lever component. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
UP SWITCH SPECIFICATION
| Test condition | Continuity |
|---|---|
| Selector lever is in the M position (+) side position. | Continuity |
| Selector lever is not in the M position (+) side position. | No continuity |
