Torque Converter Removal/Installation

Remove the transmission. (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION .)
Remove the torque converter, and immediately turn it so that the hole faces upward. This will help to keep any remaining ATF from spilling.

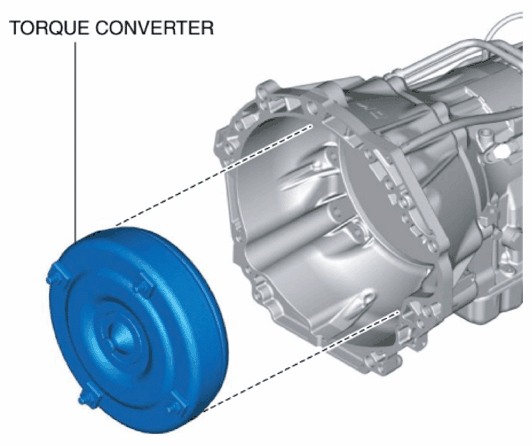

Fig 1: Removing Torque Converter
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- The oil seal can be easily damaged by the sharp edges of the torque converter splines. Do not let the splines contact the oil seal.
- Do not drop the torque converter.
- Be careful not to get your fingers pinched.
Drain any ATF remaining in the torque converter.
Using a flathead screwdriver, position the drive gear on the oil pump component to the center.
Install the torque converter to the transmission.

Fig 2: Installing Torque Converter To Transmission
Courtesy of MAZDA MOTORS CORP.
To ensure that the torque converter is installed accurately, measure distance A between the end of the torque converter and the end of the converter housing.

Fig 3: Measuring Distance Between End Of Torque Converter And End Of Converter Housing
Courtesy of MAZDA MOTORS CORP.

Distance A between end of torque converter and face of converter housing
- 21.4 mm {0.843 in} or more
Install the automatic transmission. (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION .)
Perform the mechanical system test. (See MECHANICAL SYSTEM TEST .)
