Steering Shift Switch Removal/Installation

WARNING:

Handling the driver-side air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)

Disconnect the negative battery cable and wait for 1 min or more . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

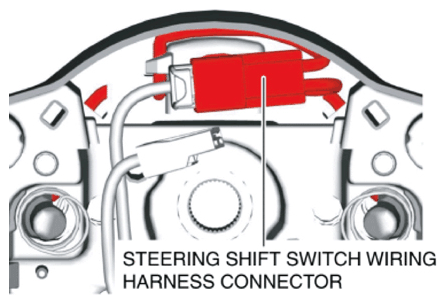

Disconnect the steering shift switch wiring harness connector.

Fig 1: Disconnecting Steering Shift Switch Wiring Harness Connector
Courtesy of MAZDA MOTORS CORP.

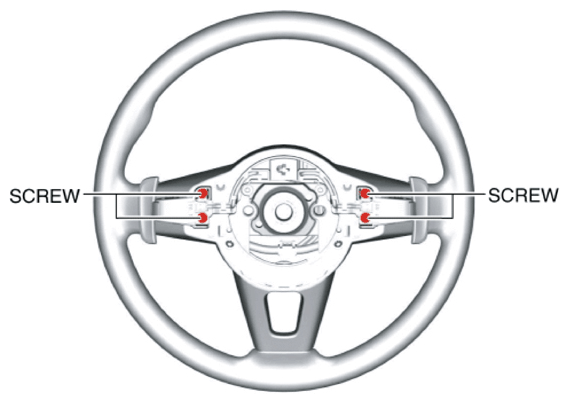

Remove the screw.

Fig 2: Removing Screw
Courtesy of MAZDA MOTORS CORP.

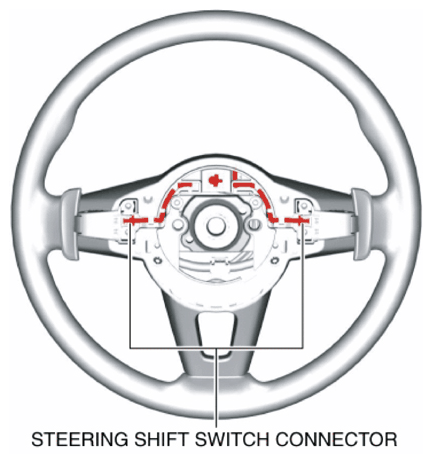

Disconnect the steering shift switch connector.

Fig 3: Disconnecting Steering Shift Switch Connector
Courtesy of MAZDA MOTORS CORP.

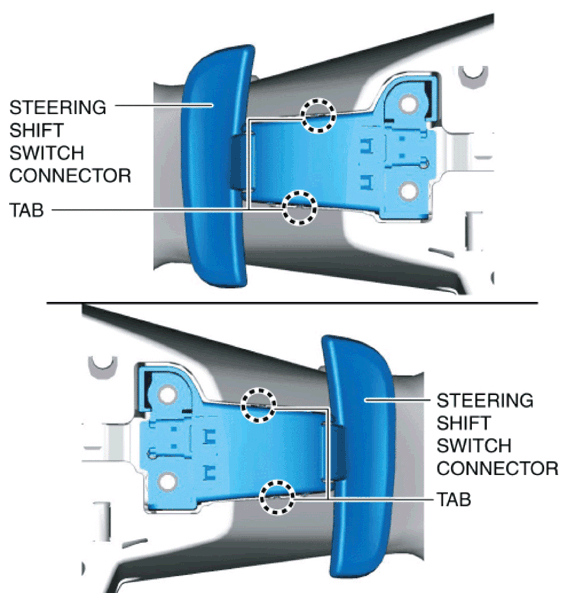

Release the tab shown in the figure and remove the steering shift switch.

Fig 4: Identifying Steering Shift Switch And Tab
Courtesy of MAZDA MOTORS CORP.

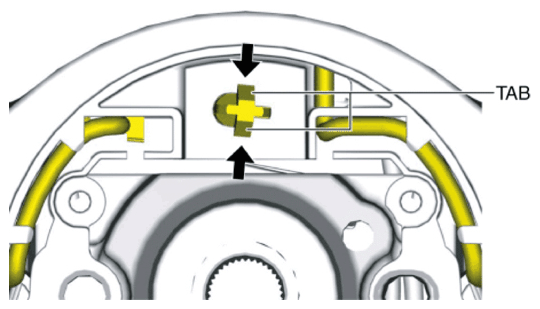

Using a precision flathead screwdriver, release the tab.

Fig 5: Releasing Tab
Courtesy of MAZDA MOTORS CORP.
Remove the steering wheel cover. (See STEERING WHEEL COVER REMOVAL/INSTALLATION .)

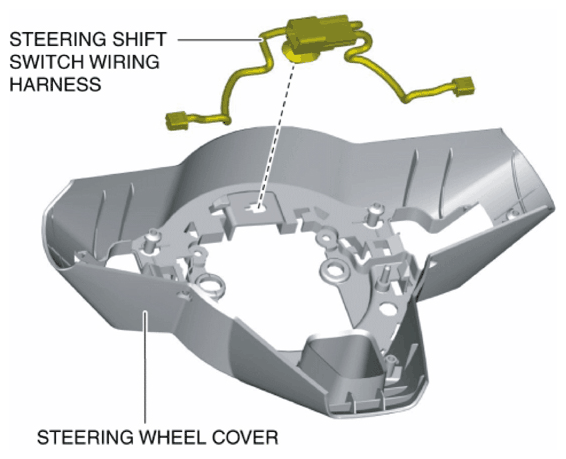

Remove the steering shift switch wiring harness from the steering wheel cover.

Fig 6: Removing Steering Shift Switch Wiring Harness From Steering Wheel Cover
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
