Continuity Inspection

NOTE:
  • The M position switch is built into the selector lever component.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)
  3. Disconnect the selector lever component connector.

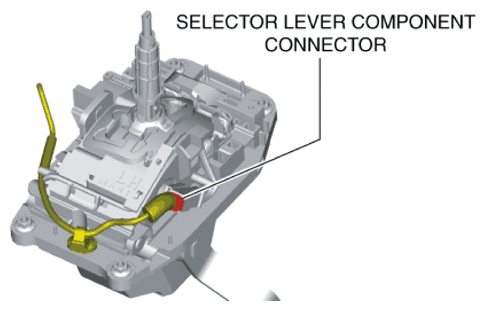

    Fig 1: Disconnecting Selector Lever Component Connector
    G10952711Courtesy of MAZDA MOTORS CORP.
  4. Verify that the continuity between selector lever component terminals E and H.
    Fig 2: Checking Continuity Between Selector Lever Component Terminals E And H
    G10952712Courtesy of MAZDA MOTORS CORP.
M POSITION SWITCH SPECIFICATION

Test condition Continuity
Selector lever is in the M position. Continuity
Selector lever is not in the M position. No continuity
