Not P Position Switch Inspection

NOTE:
  • The not P position switch is built into the selector lever component.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)
  3. Disconnect the selector lever component connector.

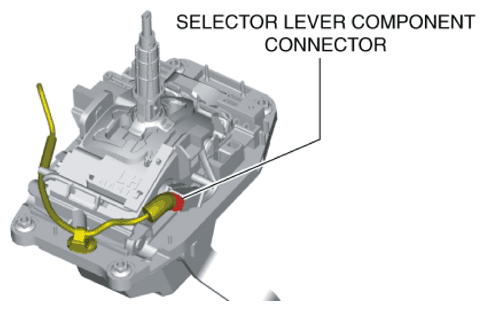

    Fig 1: Disconnecting Selector Lever Component Connector
    G10952991Courtesy of MAZDA MOTORS CORP.
  4. Verify that the continuity between selector lever component terminals B and G.
    Fig 2: Inspecting Continuity Between Selector Lever Component Terminals B And G
    G10952992Courtesy of MAZDA MOTORS CORP.
P POSITION SWITCH SPECIFICATION

Test condition Continuity
Selector lever is in the P position. No continuity
Selector lever is not in the P position. Continuity
