Symptom Troubleshooting - Engine
>>
Foreword
>>
Troubleshooting Procedure
Troubleshooting Procedure

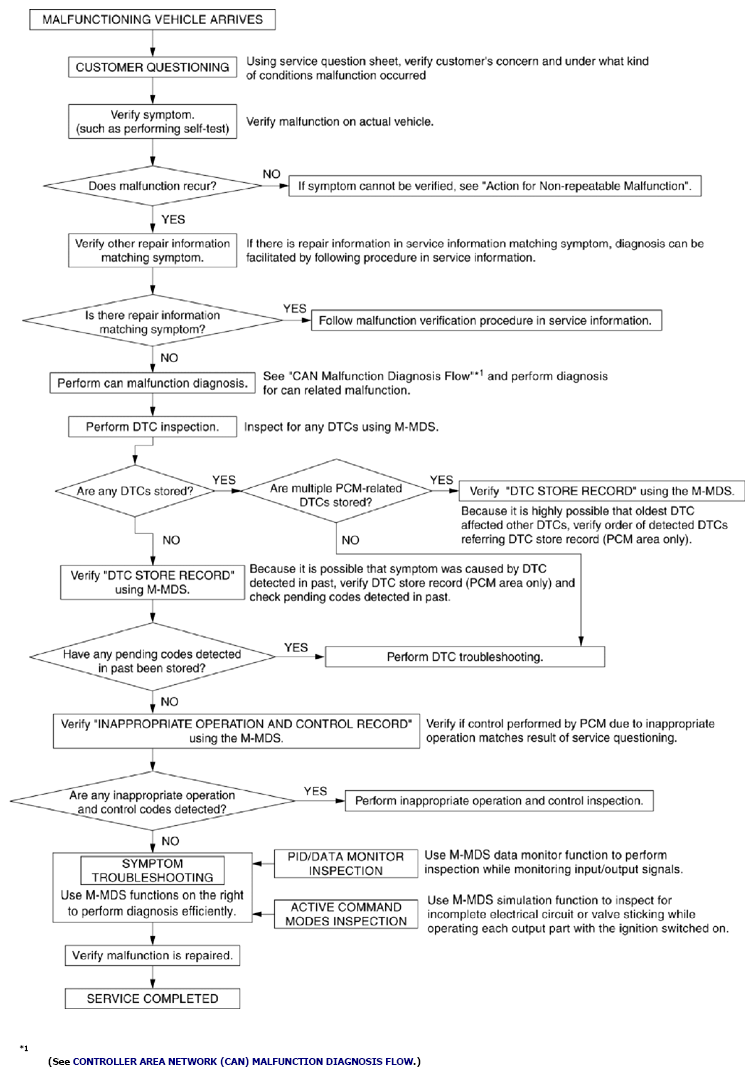

Fig 1: SKYACTIV-G 2.0 - Troubleshooting Flowchart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
