| DETECTION CONDITION |
- The PCM monitors the input voltage from the MAP sensor. If the input voltage at the PCM terminal 1BW is below 0.08 V
for 5 s
, the PCM determines that the MAP sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Estimates MAP using MAF sensor and engine speed.
- Restricts the upper limit of the engine speed.
- Inhibits the evaporative purge control.
|
| POSSIBLE CAUSE |
- MAP sensor/IAT sensor No. 2 connector or terminals malfunction
- PCM connector or terminals malfunction

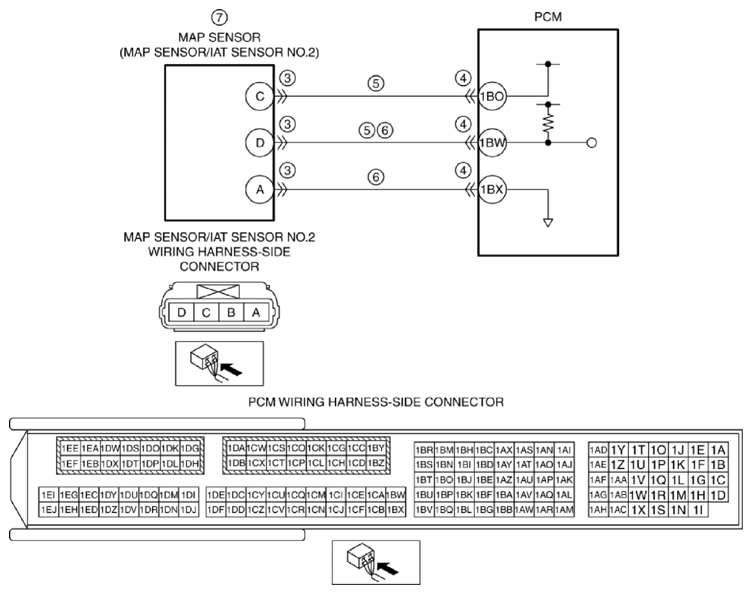

- Short to ground in wiring harness between the following terminals:
- MAP sensor/IAT sensor No. 2 terminal C-PCM terminal 1BO
- MAP sensor/IAT sensor No. 2 terminal D-PCM terminal 1BW
- MAP sensor signal circuit and ground circuit are shorted to each other
- MAP sensor malfunction
- PCM malfunction
|
|
|
