Rear Housing Installation Note

NOTE:

After applying silicone sealant, install the rear housing within 10 min. and then tighten all bolts within 5 min.

Apply silicone sealant to the areas shown in the figure.

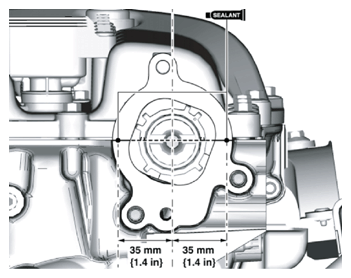

Fig 1: Identifying Rear Housing Sealant Applying Area
Courtesy of MAZDA MOTORS CORP.

Thickness
- 3.0-7.0 mm {0.12-0.27 in}
Install the rear housing.
Tighten the rear housing installation bolts.
Rear housing installation bolt tightening torque
- 20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
Install the exhaust CMP sensor. (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
Install the insulator.

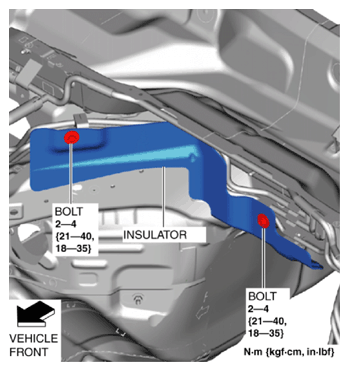

Fig 2: Identifying Insulator And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
