Joint hose installation note

  1. Install the joint hose as shown in the figure.

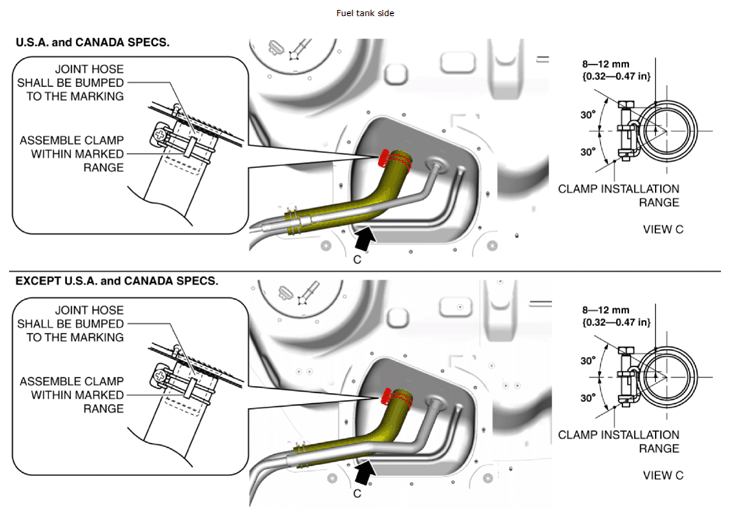

    Fig 1: Joint Hose Clamp Installation Range (Fuel Tank Side)
    G10951730Courtesy of MAZDA MOTORS CORP.

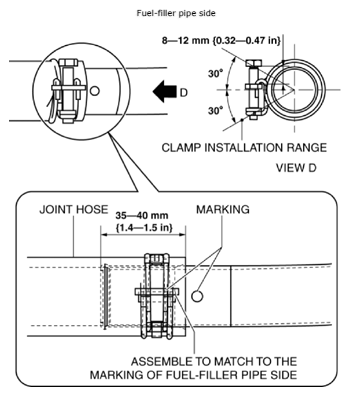

    Fig 2: Joint Hose Clamp Installation Range (Fuel-Filler Pipe Side)
    G10951731Courtesy of MAZDA MOTORS CORP.
