Continuity Inspection
- Verify that the CPP switch is installed properly. (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION .)
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Disconnect the CPP switch connector.

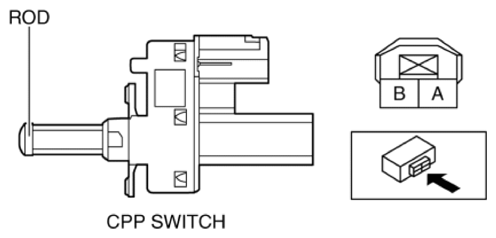

- Verify that the continuity between CPP switch terminals A and B when the clutch pedal is depressed and when it is released is according to the following table:
- If not as verified, replace the CPP switch. (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION .)
CLUTCH PEDAL SPECIFICATION
| Clutch pedal position | Continuity |
|---|---|
| Clutch pedal released (Rod is pressed.) |
No continuity |
| Clutch pedal depressed (Rod is not pressed.) |
Continuity detected |
