Engine Mount (RH): Notes

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the bolt shown in the figure and set the ground cable aside.

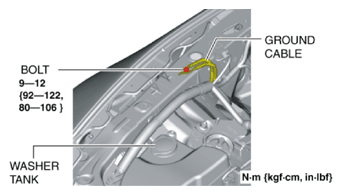

    Fig 1: Identifying Ground Cable, Washer Tank And Bolt With Torque Specification
    G10951545Courtesy of MAZDA MOTORS CORP.
  3. Remove the front wheels and tires (RH). (See GENERAL PROCEDURES (SUSPENSION) .)
  4. Remove the fasteners shown in the figure and slightly bend back the front mudguard No. 2 (RH).
    Fig 2: Identifying Front Mudguard And Fasteners
    G10951546Courtesy of MAZDA MOTORS CORP.
  5. Remove the front splash shield No. 1 (RH). (See FRONT SPLASH SHIELD No. 1 REMOVAL/INSTALLATION .)
  6. Remove the front crossmember under cover. (See FRONT CROSSMEMBER UNDER COVER REMOVAL/INSTALLATION .)
  7. Remove in the order indicated in the table.
  8. Install in the reverse order of removal.

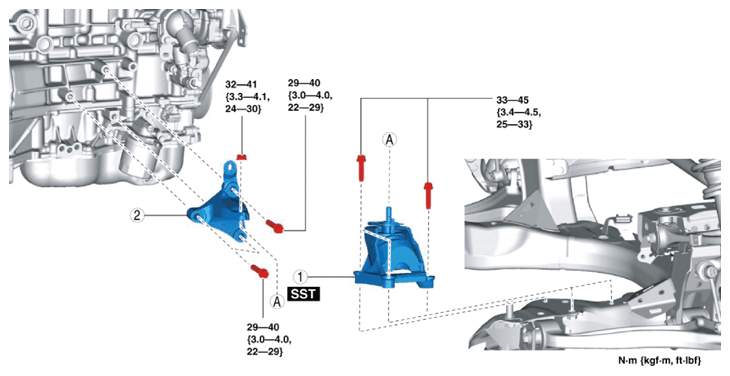

Fig 3: Engine Mount Rubber And Bracket Bolts With Torque Specifications
G10951547Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Engine mount rubber (RH)
(See Engine mount rubber (RH) removal note .)
(See Engine mount rubber (RH) installation note .)
2 Engine mount bracket (RH)
