Engine Mount (LH): Notes

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the bolt shown in the figure and set the ground cable aside.

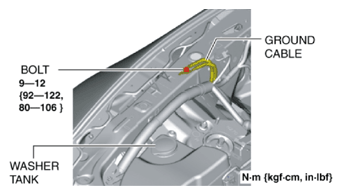

    Fig 1: Identifying Ground Cable, Washer Tank And Bolt With Torque Specification
    G10951554Courtesy of MAZDA MOTORS CORP.
  3. Remove the front wheels and tires (LH). (See GENERAL PROCEDURES (SUSPENSION) .)
  4. Remove the fasteners shown in the figure and slightly bend back the front mudguard No. 2 (LH).
    Fig 2: Identifying Front Mudguard And Fasteners
    G10951555Courtesy of MAZDA MOTORS CORP.
  5. Remove the front splash shield No. 1 (LH). (See FRONT SPLASH SHIELD No. 1 REMOVAL/INSTALLATION .)
  6. Remove in the order indicated in the table.
  7. Install in the reverse order of removal.

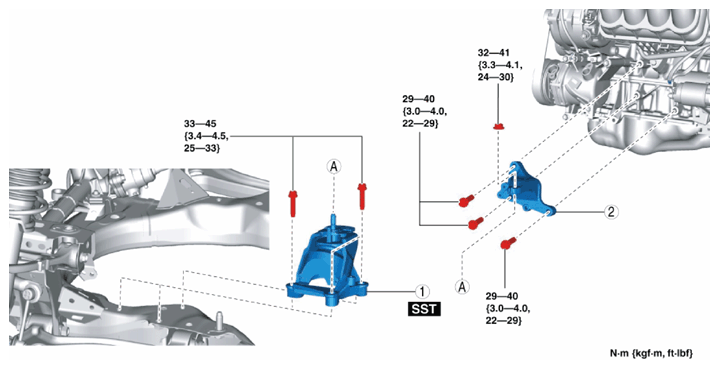

Fig 3: Identifying Engine Mount Rubber And Bracket Bolts With Torque Specifications
G10951556Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Engine mount rubber (LH)
(See Engine mount rubber (LH) removal note .)
(See Engine mount rubber (LH) installation note .)
2 Engine mount bracket (LH)
(See Engine mount bracket (LH) removal note .)
(See Engine mount bracket (LH) installation Note .)
