Electric Variable Valve Timing Motor/Driver Removal/Installation: Notes

WARNING:

• A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

CAUTION:

• Applying excessive force (force of 100 N {10.2 kgf, 22.5 lbf} or more) to the electric variable valve timing motor/driver may cause a malfunction. When servicing, be careful not to apply excessive force to the electric variable valve timing motor/driver using other parts or tools.
• Do not disassemble the electric variable valve timing motor/driver because it is a precision unit.

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

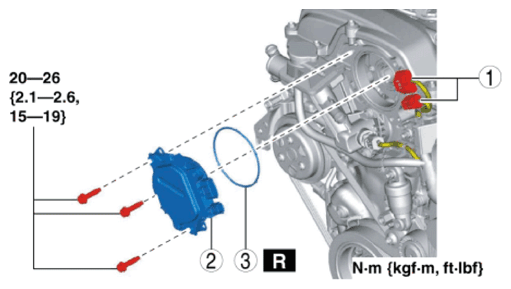

Fig 1: Electric Variable Valve Timing Motor/Driver, Connector And O-Ring Bolts With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Electric variable valve timing motor/driver connector
2	Electric variable valve timing motor/driver (See Electric Variable Valve Timing Motor/Driver Installation Note .)
3	O-ring
