Bracket Installation Note

Temporarily tighten the bolt as shown in the figure.

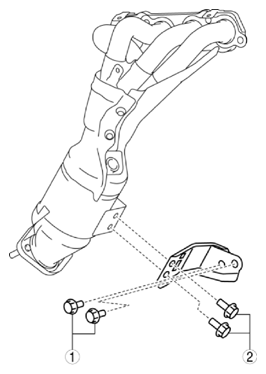

Fig 1: Identifying Bracket
Courtesy of MAZDA MOTORS CORP.
Tighten the bolt as shown in the figure.

Fig 2: Identifying Bracket Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
