Starter Installation Note (AT)

CAUTION:
  • Do not overlap the starter with the end plate (area A shown in figure) when installing. If the starter is not correctly installed, the nut installed to the drive plate may contact the end plate causing abnormal noise.

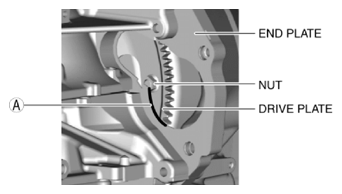

Fig 1: Identifying Drive Plate, End Plate And Nut
G10951923Courtesy of MAZDA MOTORS CORP.
