Battery Tray Installation Note

Set the battery tray to the installation position.
Tighten the battery tray installation bolts in the order shown in the figure.

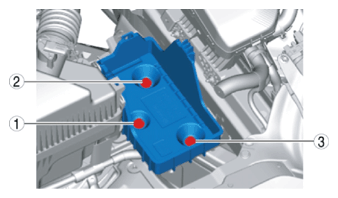

Fig 1: Identifying Battery Tray Installation Bolts
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 22-30 N.m {2.3-3.0 kgf.m, 17-22 ft.lbf}
Install the wiring harness clip to the battery tray.

Fig 2: Identifying Wiring Harness Clip

G10951882

Courtesy of MAZDA MOTORS CORP.
