Front Abs Wheel-Speed Sensor Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the front mudguard No. 1 and front deflector as a single unit. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.
  5. After installation, verify that there is no twisting in the front ABS wheel-speed sensor.

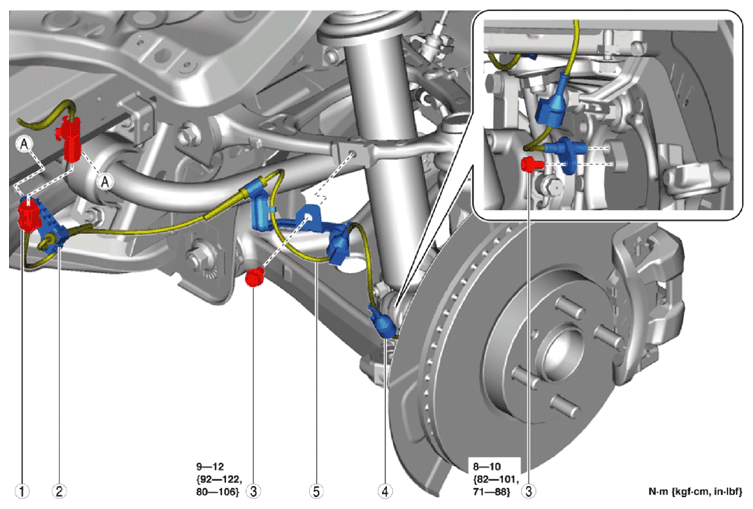

    Fig 1: Front ABS Wheel-Speed Sensor Related Components With Torque Specification
    G10952487Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Connector
    2 Harness clip
    3 Bolt
    4 Grommet
    5 Front ABS wheel-speed sensor
