Brake Pipe Installation Note

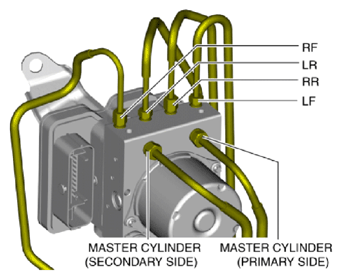

  1. Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the figure.
Fig 1: Identifying DSC HU/CM And Brake Pipe Joints
G10952482Courtesy of MAZDA MOTORS CORP.
