Passenger-Side Door Glass Cannot Be Operated Manually Or Automatically: Notes

Description	Passenger-side door glass cannot be operated manually or automatically using power window sub switch

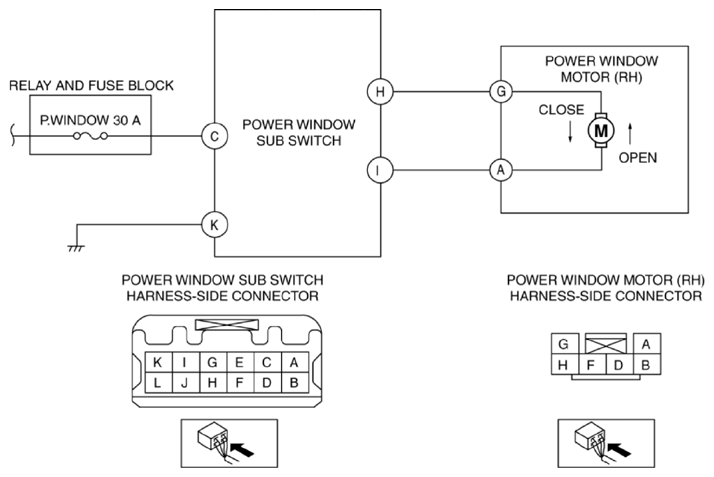

Possible Causes	Power window sub switch malfunction Power window motor (RH) malfunction Malfunction in power window sub switch power supply circuit Short to ground in wiring harness between P.WINDOW 30A fuse and power window sub switch terminal C P.WINDOW 30A fuse malfunction Open circuit in wiring harness between P.WINDOW 30A fuse and power window sub switch terminal C Malfunction in wiring harness between power window sub switch terminals and power window motor (RH) terminals Open circuit in wiring harness between power window sub switch terminal I and power window motor (RH) terminal A Open circuit in wiring harness between power window sub switch terminal H and power window motor (RH) terminal G Short to ground in wiring harness between power window sub switch terminal I and power window motor (RH) terminal A Short to ground in wiring harness between power window sub switch terminal H and power window motor (RH) terminal G Open circuit in wiring harness between power window sub switch terminal K and body ground Connector poor contact or terminal damage
