Driver-Side Door Glass Can Be Operated Manually But Cannot Be Operated Automatically
>>
Inspection Using an Oscilloscope
Inspection Using an Oscilloscope

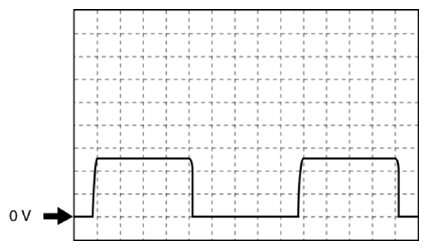

Fig 1: Power Window Oscilloscope Graph (Driver Side)
Courtesy of MAZDA MOTORS CORP.
Power window main switch: 2D (+), 2F (+) ↔ ground (-)
Power window motor (LH): B (+), F (+) ↔ ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
Courtesy of MAZDA MOTORS CORP.
