Power Window Regulator Removal/Installation

  1. Perform the door glass preparation. (See DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Door trim (See DOOR TRIM REMOVAL/INSTALLATION .)
    2. Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION .)
    3. Door glass (See DOOR GLASS REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

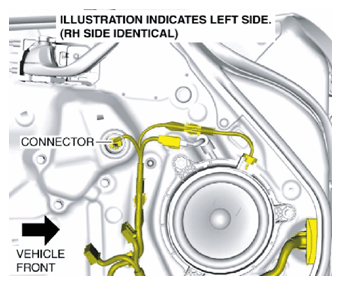

    Fig 1: Identifying Power Window Regulator Connector
    G10954116Courtesy of MAZDA MOTORS CORP.
  5. Remove the nuts (1).

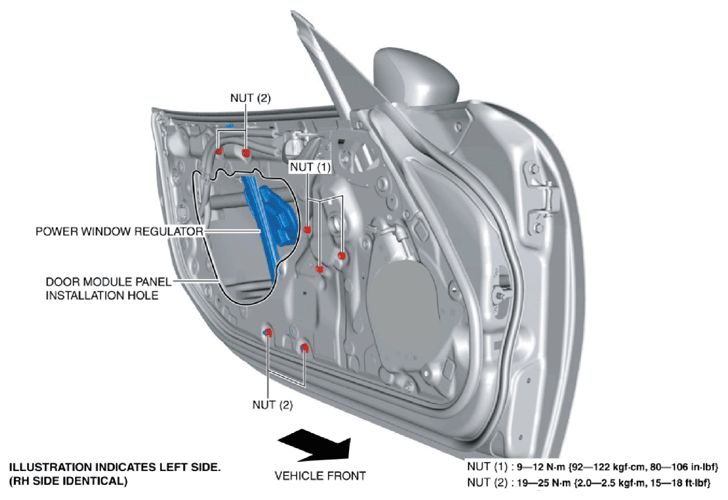

    Fig 2: Identifying Power Window Regulator Nuts
    G10954117Courtesy of MAZDA MOTORS CORP.
  6. Remove the nuts (2).
  7. Remove the power window regulator through the door module panel installation hole.
  8. Install in the reverse order of removal.
  9. Perform the power window system initial setting.(See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
