Door Glass Removal/Installation: Installation

  1. Set the door glass to the carrier plate and temporarily tighten the nuts.

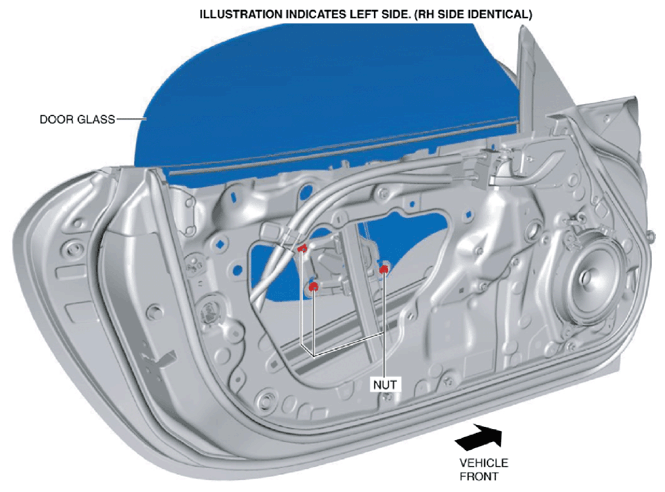

    Fig 1: Identifying Door Glass Nuts
    G10954076Courtesy of MAZDA MOTORS CORP.
  2. Connect the power window main switch connector or power window subswitch connector.
  3. Disconnect the pressure sensor connector. (with pressure sensor) (See PRESSURE SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
  4. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  5. Operate the power window main switch or power window subswitch to fully close the door glass.
  6. Align the position of the door glass rear end with the marking shown in the figure.

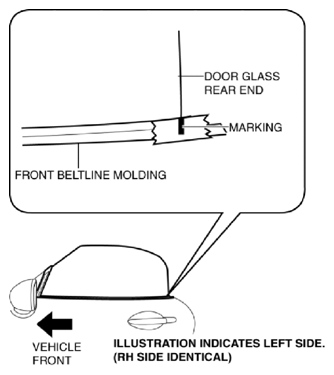

    Fig 2: Aligning Door Glass Rear End Position With Marking
    G10954077Courtesy of MAZDA MOTORS CORP.
  7. Operate the power window main switch or power window subswitch to adjust the door glass to the position shown in the figure.

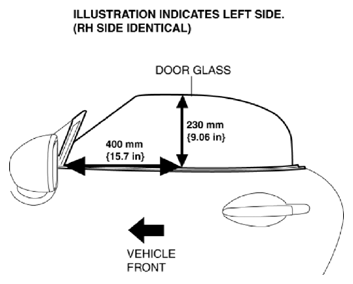

    Fig 3: Identifying Door Glass Dimensions
    G10954078Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  9. Disconnect the power window main switch connector or power window subswitch connector.
  10. Connect the pressure sensor connector. (with pressure sensor) (See PRESSURE SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
  11. Completely tighten the nuts.

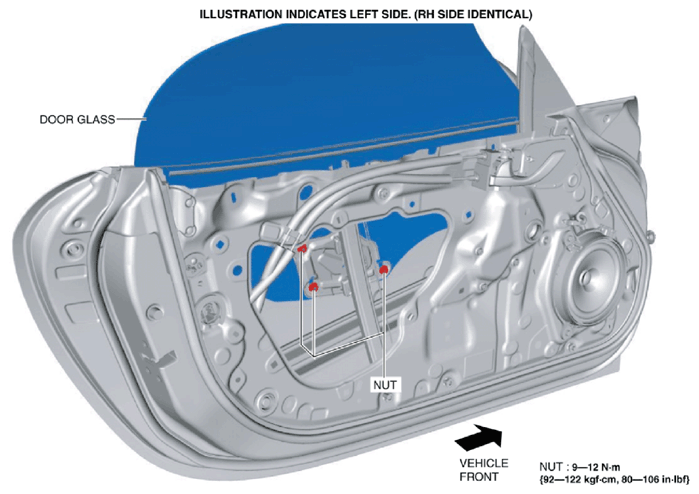

    Fig 4: Identifying Door Glass Nuts
    G10954079Courtesy of MAZDA MOTORS CORP.
  12. Install the stabilizer.

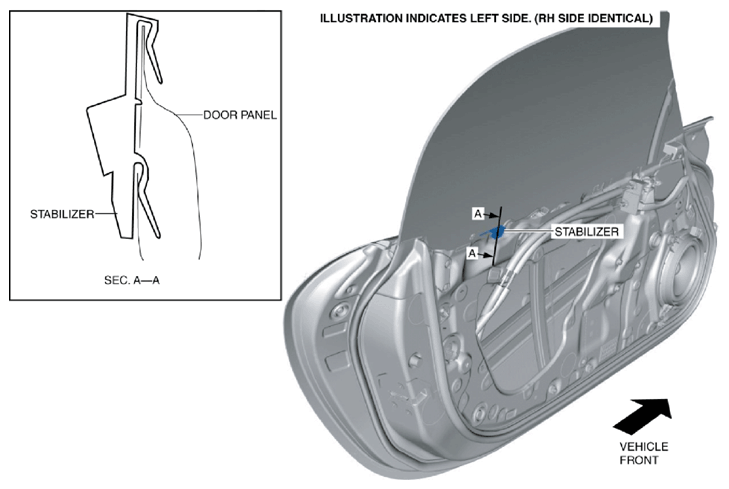

    Fig 5: Identifying Door Panel Stabilizer Section
    G10954080Courtesy of MAZDA MOTORS CORP.
  13. Install the door module panel. (See DOOR MODULE PANEL REMOVAL/INSTALLATION .)
  14. Install the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
  15. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  16. Close the door with the convertible top closed.
  17. Operate the power window main switch or power window subswitch and verify that the door glass moves up/down smoothly.
    • If the door glass does not move up/down smoothly, adjust the door glass position. (See DOOR GLASS ADJUSTMENT .)
  18. Perform the power window system initial setting.(See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
