Accessory Socket Short-Cord Inspection

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION .)
2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
4. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
5. Accessory socket (See ACCESSORY SOCKET REMOVAL/INSTALLATION .)
Verify that the continuity between the accessory socket short-cord terminals is as indicated in the table.

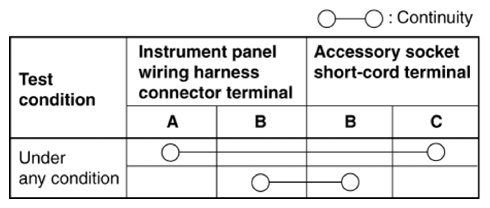

Fig 1: Accessory Socket Short-Cord Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

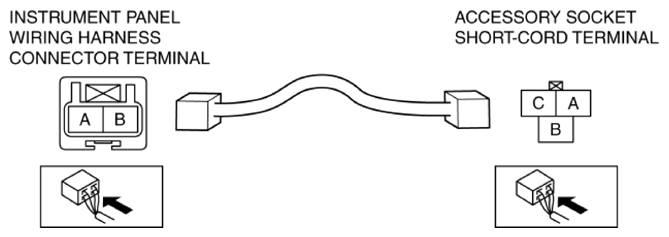

Fig 2: Identifying Instrument Panel Wiring Harness Connector Terminal
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the accessory socket short-cord. (See A/C UNIT REMOVAL/INSTALLATION .) (See A/C UNIT DISASSEMBLY/ASSEMBLY .)
