| DTC P0035-00: |
Air bypass valve control circuit high input |
| DETECTION CONDITION |
- The air bypass valve control voltage at the PCM terminal 1BC is high for a continuous 5 s
relative to the PCM control condition.
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Stop the supercharging pressure control. (fully open the wastegate valve)
|
| POSSIBLE CAUSE |
- Air bypass valve connector or terminals malfunction
- PCM connector or terminals malfunction

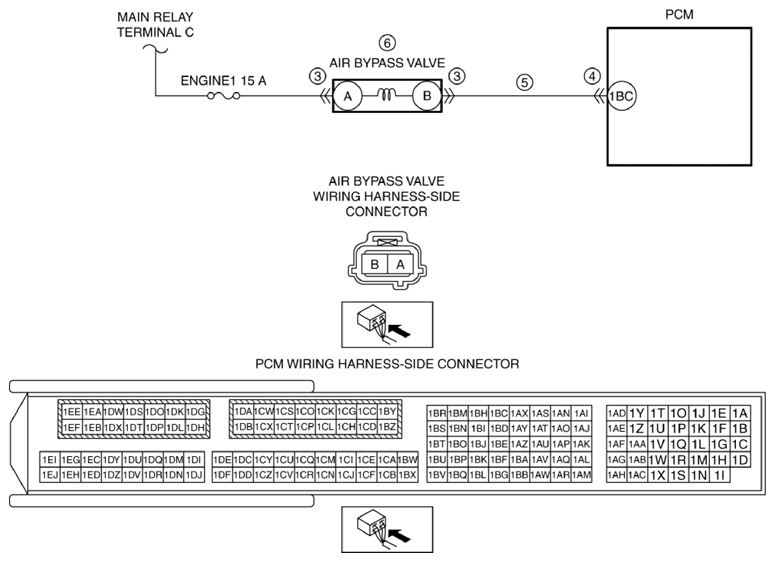

- Short to power supply in wiring harness between air bypass valve terminal B and PCM terminal 1BC
- Air bypass valve malfunction
- PCM malfunction
|
|
|
