System Wiring Diagram

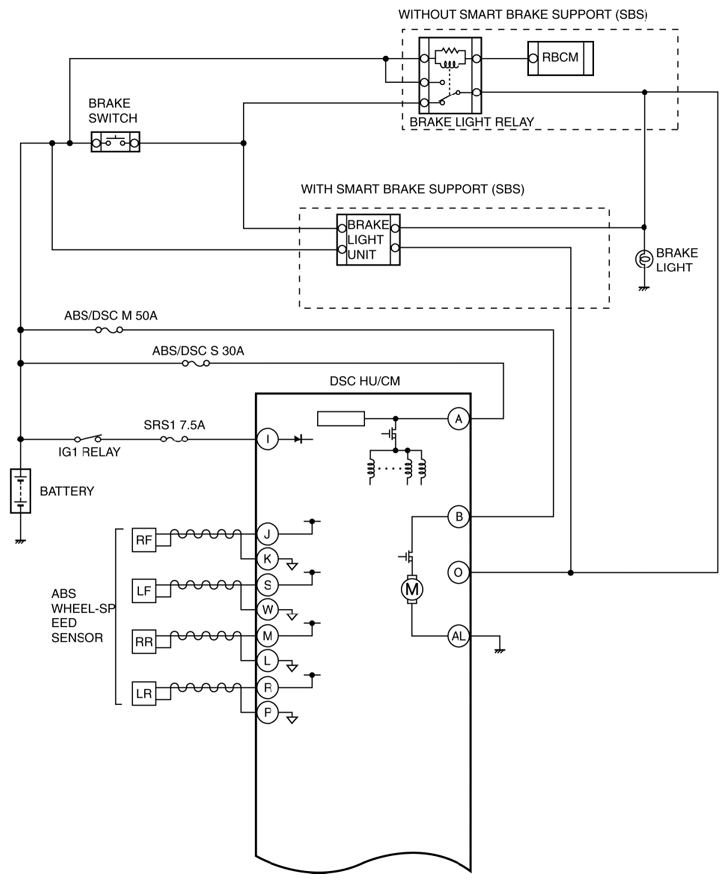

Fig 1: Dynamic Stability Control HM/CM Wiring Diagram (1 Of 2)
G10947661Courtesy of MAZDA MOTORS CORP.

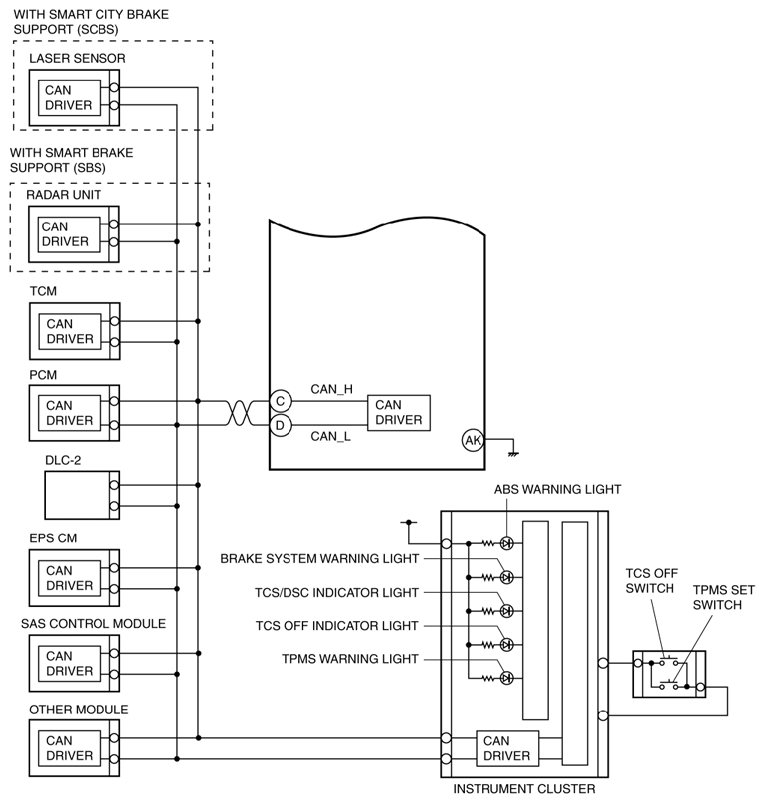

Fig 2: Dynamic Stability Control HM/CM Wiring Diagram (2 Of 2)
G10947662Courtesy of MAZDA MOTORS CORP.
