Second-Row Buckle Removal/Installation: RH

  1. Switch the ignition to off.
  2. Disconnect the negative battery terminal and wait for 1 min or more  . (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Second-row seat (passenger's side) (Refer to SECOND-ROW SEAT REMOVAL/INSTALLATION .)
    2. Second-row seat side cover (passenger's side) (Refer to SECOND-ROW SEAT SIDE COVER REMOVAL/INSTALLATION .)
    3. Second-row seat slide adjuster (passenger's side) (Refer to SECOND-ROW SEAT SLIDE ADJUSTER REMOVAL/INSTALLATION .)
  4. Remove the bolt.

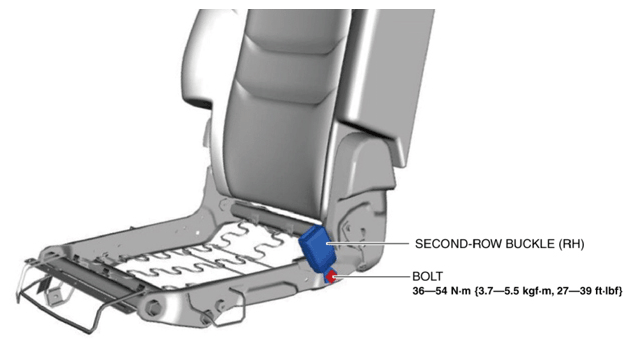

    Fig 1: Removing Second-Row Buckle Bolt (RH)
    G10948927Courtesy of MAZDA MOTORS CORP.
  5. Remove the second-row buckle (RH).
  6. Install in the reverse order of removal.
