Catch Tank Inspection

  1. Plug the purge solenoid valve side into the catch tank.

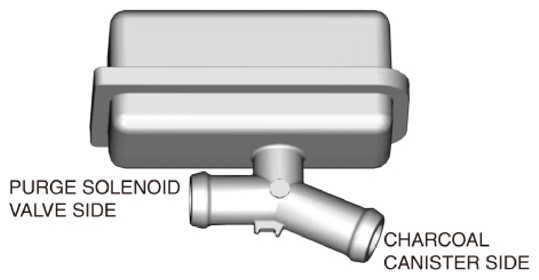

    Fig 1: Identifying Purge Solenoid Valve Side
    G10946948Courtesy of MAZDA MOTORS CORP.
  2. Inspect for air leakage when blowing air using your mouth into the charcoal canister side.
