Front Door Trim Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

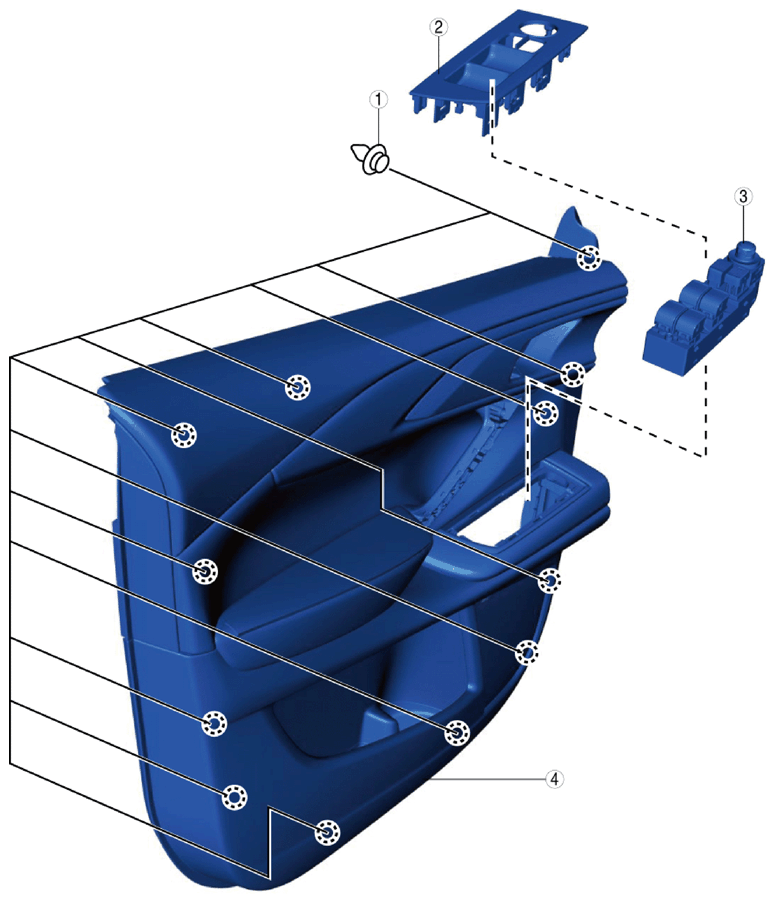

    Fig 1: Identifying Front Door Trim Components (Driver-Side)
    G10950270Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Fastener
    2 Switch panel
    3 Power window main switch
    4 Front door trim

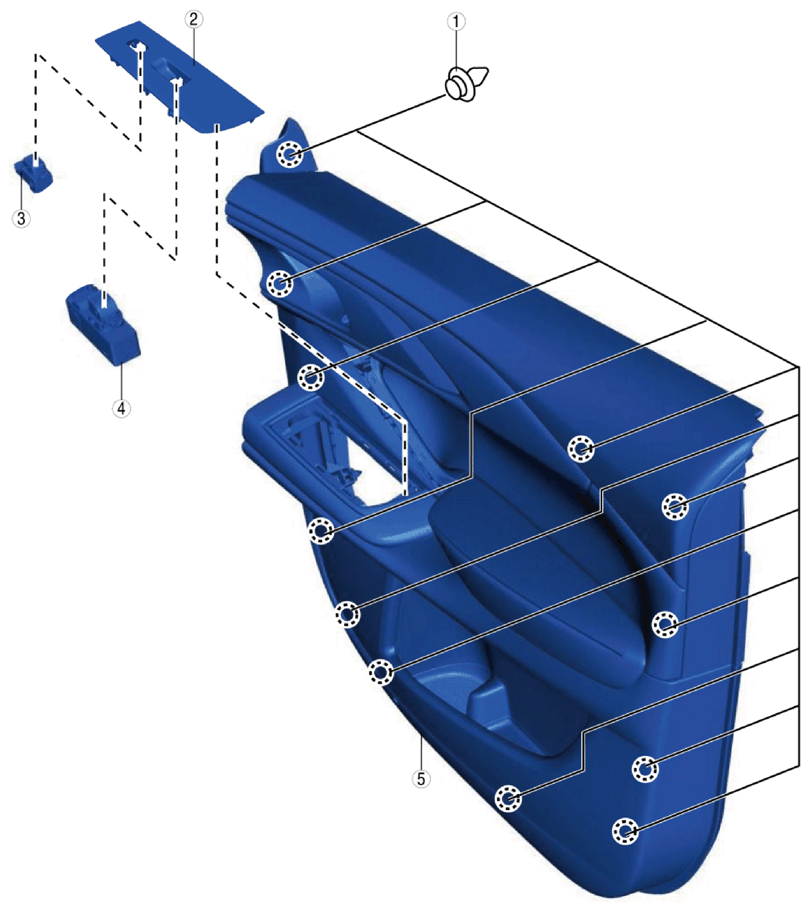

    Fig 2: Identifying Front Door Trim Components (Passenger-Side)
    G10950271Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Fastener
    2 Switch panel
    3 ock switch
    4 Power window subswitch
    5 Front door trim
  2. Assemble in the reverse order of disassembly.
