Dashboard Pad

  1. Disassemble in the order indicated in the table.

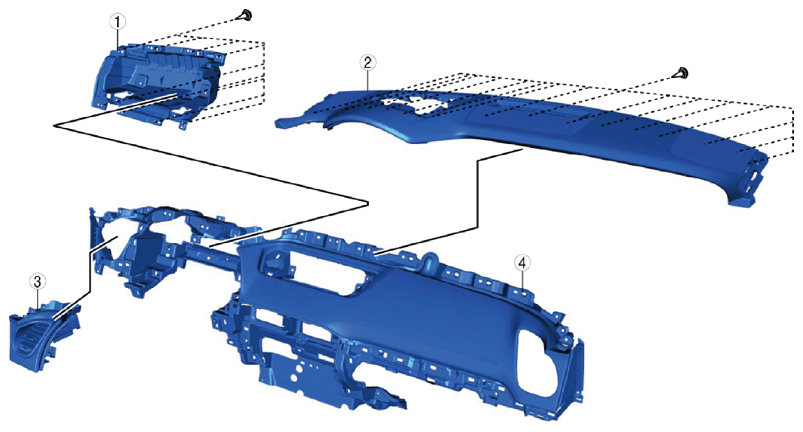

    Fig 1: Identifying Dashboard Pad Components
    G10950167Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 dashboard box
    2 Jashboard pad upper
    3 dashboard panel
    4 dashboard pad lower
  2. Assemble in the reverse order of disassembly.
