Action for Non-repeatable Malfunction
- If the malfunction does not recur, verify the malfunction cause by performing the following actions:
- Verify that a DTC has been recorded in the memory. (Refer to DTC INSPECTION [AUTO LEVELING CONTROL MODULE] .)
- Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.
- Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for malfunction or occurrence of any DTCs.
Courtesy of MAZDA

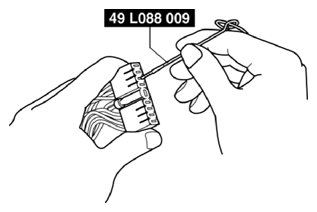

- Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection.
Courtesy of MAZDA
