| Description |
IG2 control circuit malfunction |
| Detection condition |
- Front body control module (FBCM) detects an open circuit in the IG2 control circuit for 2 s or more
with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Start stop unit connector or terminal malfunction
- Front body control module (FBCM) connector or terminal malfunction

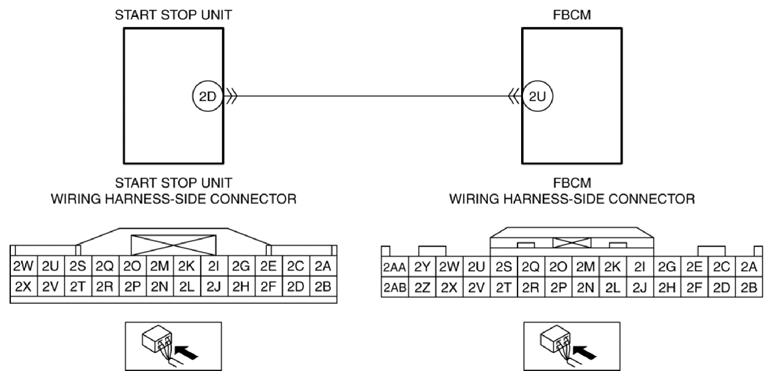

- Open circuit in the wiring harness between start stop unit terminal 2D and front body control module (FBCM) terminal 2U
- Start stop unit malfunction
- Front body control module (FBCM) malfunction
|
|
|
