Side Air Bag Module Removal/Installation [Two-Step Deployment Control System]

WARNING:

Handling the side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the side air bag module. (Refer to AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (Refer to AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
If the side air bag module is installed with debris in the seat back, the foreign material may be scattered when the side air bag module operates (deploys), causing injury. Verify that there is no foreign material in the seat back before installing the side air bag module.

Switch the ignition off.
Disconnect the negative battery terminal and wait for 1 min or more . (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front seat. (Refer to FRONT SEAT REMOVAL/INSTALLATION .)
Remove the front seat back trim and seat back pad. (Refer to FRONT SEAT BACK TRIM REMOVAL/INSTALLATION .)
Remove the fasteners and set the front seat cushion trim away from the front seat cushion frame. (With power seat system)

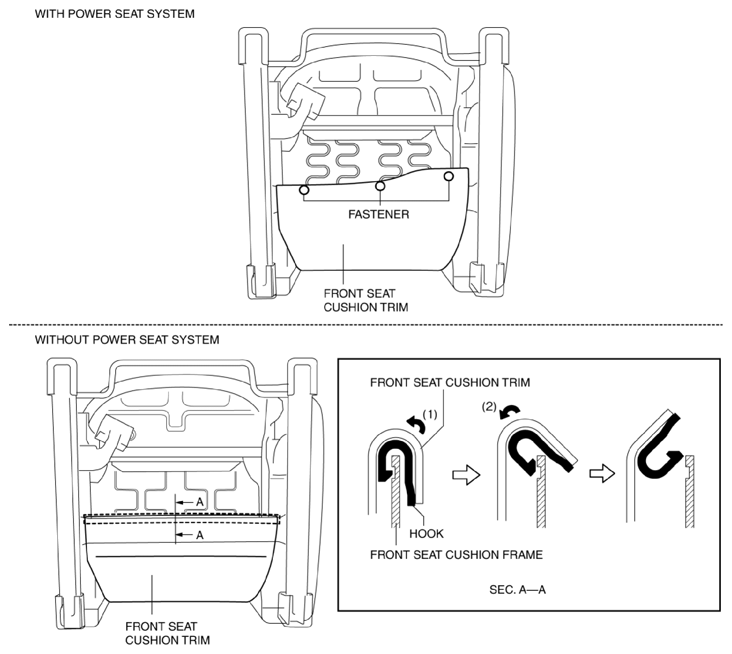

Fig 1: Setting Front Seat Cushion Trim Away From Front Seat Cushion Frame
Courtesy of MAZDA MOTORS CORP.
Move the hook in the order of arrows (1) and (2) shown in the figure and set the front seat cushion trim away from the front seat cushion frame. (Without power seat system)
Disconnect the side air bag module connector.

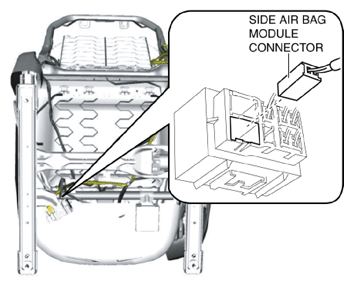

Fig 2: Disconnecting Side Air Bag Module Connector
Courtesy of MAZDA MOTORS CORP.
Remove the side air bag module wiring harness from the hook.

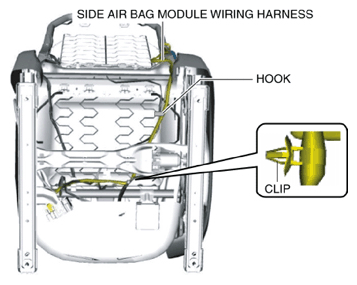

Fig 3: Removing Side Air Bag Module Wiring Harness From Hook
Courtesy of MAZDA MOTORS CORP.
Remove the clip.
Remove the nuts.

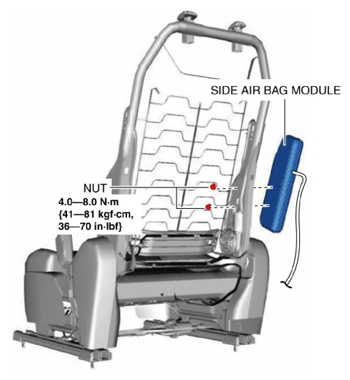

Fig 4: Removing Side Air Bag Module Nuts
Courtesy of MAZDA MOTORS CORP.
Remove the side air bag module.
Install in the reverse order of removal.
Switch the ignition ON (engine off or on).
Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.
- If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (Refer to FLOWCHART [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)] .)
