Liftgate Lock Actuator Inspection

  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Liftgate upper trim (Refer to LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (Refer to LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate lower trim (Refer to LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
    4. Liftgate latch and lock actuator (Refer to LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
  3. Press in the latch lever of the liftgate latch and lock actuator using a flathead screwdriver, and set it to the latched condition.

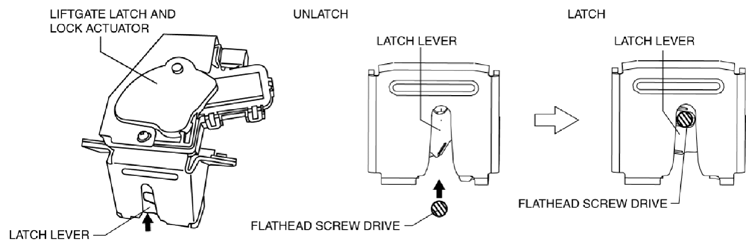

    Fig 1: Pressing Latch Lever Of Liftgate Latch And Lock Actuator Using Flathead Screwdriver
    G10949848Courtesy of MAZDA MOTORS CORP.
  4. Connect terminal D to the positive battery voltage, connect terminal B to the ground, and verify that the latch lever is released and the condition changes to the unlatch condition.

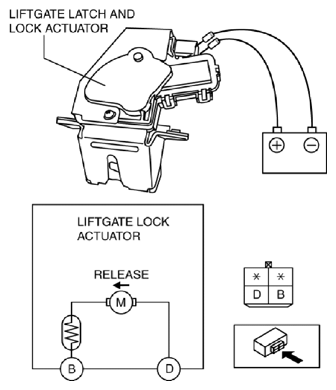

    Fig 2: Liftgate Lock Actuator Circuit Diagram
    G10949849Courtesy of MAZDA MOTORS CORP.
    • If the operation cannot be verified, replace the liftgate latch and lock actuator.
