Light Switch Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the column cover. (Refer to COLUMN COVER REMOVAL/INSTALLATION .)

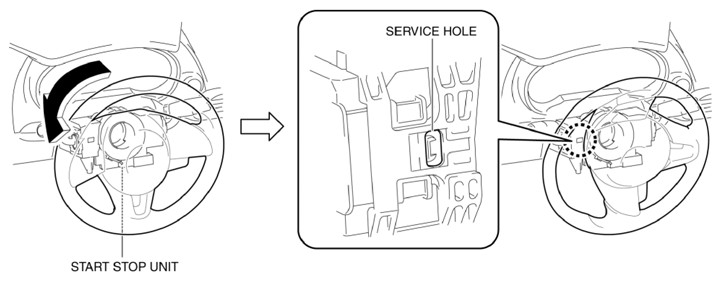

  3. Rotate the steering wheel until the service hole is visible in the position shown in the figure.
    Fig 1: Rotating Steering Wheel Until Service Hole
    G10950448Courtesy of MAZDA MOTORS CORP.

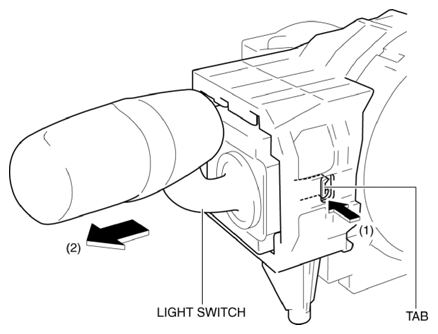

  4. While pressing the light switch tab in the direction of arrow (1) shown in the figure, pull out the light switch in the direction of arrow (2) shown in the figure, and detach the light switch tab from the start stop unit.
    Fig 2: Pressing Light Switch Tab
    G10950449Courtesy of MAZDA MOTORS CORP.
  5. Remove the light switch.
  6. Install in the reverse order of removal.
