Liftgate Light Installation Note

  1. If reinstalling the removed liftgate light, completely remove the gasket using a remover tool, and then install a new gasket to the position shown in the figure.

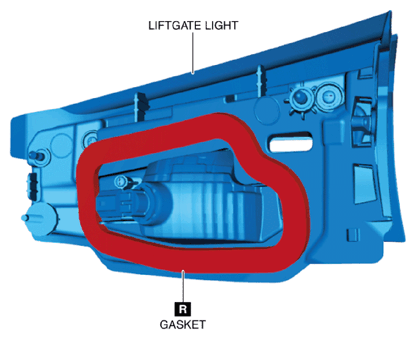

    Fig 1: Identifying Liftgate Light And Gasket
    G10950420Courtesy of MAZDA MOTORS CORP.
