Rear Mount Camera Removal/Installation
- Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Liftgate upper trim (Refer to LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
- Liftgate side trim (Refer to LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
- Liftgate recess cover (Refer to LIFTGATE RECESS REMOVAL/INSTALLATION .)
- Power liftgate (PLG) rear switch (with power liftgate) (Refer to POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
- Liftgate lower trim (Refer to LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
- Rear finisher (Refer to REAR FINISHER REMOVAL .) (Refer to REAR FINISHER INSTALLATION .)

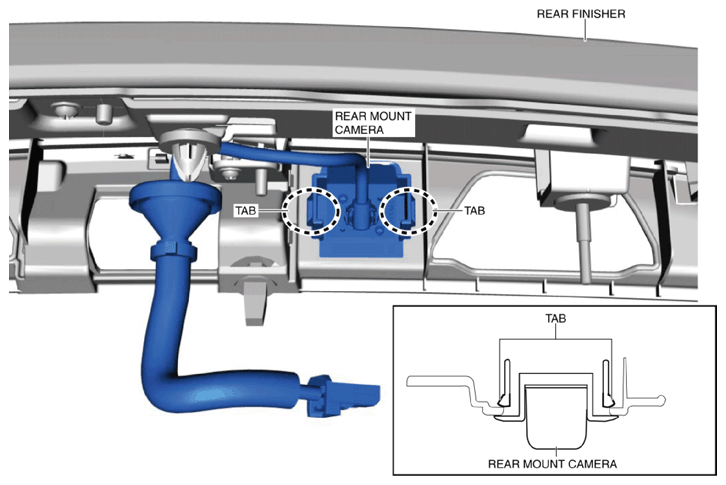

- Remove the rear mount camera while detaching the tabs of the rear finisher.
- Install in the reverse order of removal.
