AudioPilot® MICROPHONE REMOVAL/INSTALLATION
NOTE:
- AudioPilot® is a registered trademark of Bose® Corporation.
- Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
- Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
- Console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
- Front console (Refer to FRONT CONSOLE REMOVAL/INSTALLATION .)
- Glove compartment (Refer to GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
- Dashboard under cover (Refer to DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
- Passenger-side decoration panel (Refer to DECORATION PANEL REMOVAL/INSTALLATION .)
- Front scuff plate (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Front side trim (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Hood release lever (Refer to HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
- Fuel-filler lid opener lever (Refer to FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
- Driver-side lower panel (Refer to DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
- Passenger-side lower panel (Refer to PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)

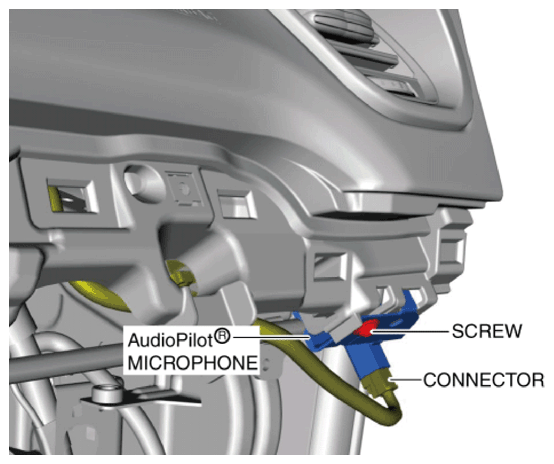

- Disconnect the connector.
- Remove the screw.
- Remove the AudioPilot ® microphone.
- Install in the reverse order of removal.
