Audio Amplifier Removal/Installation

Slide the front seat rearward (RH).
Remove the bolts.

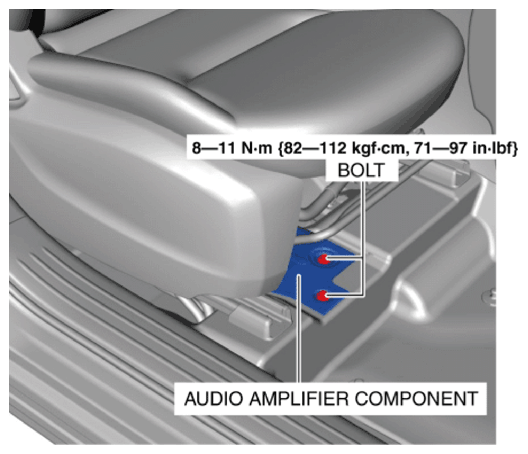

Fig 1: Identifying Audio Amplifier Component Bolts With Torque Specifications
Courtesy of MAZDA.
Slide the front seat forward (RH).
Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the bolt.

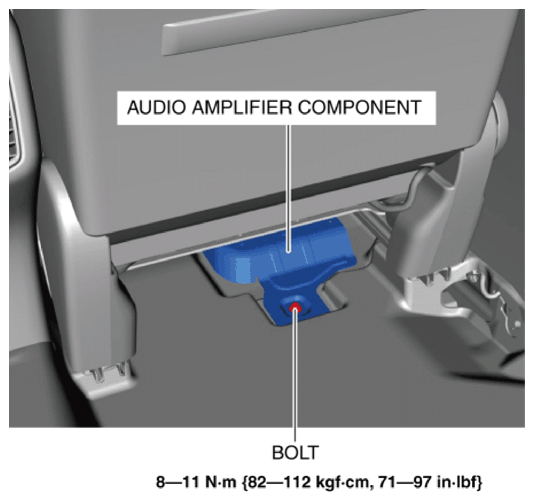

Fig 2: Identifying Audio Amplifier Component Bolt With Torque Specification
Courtesy of MAZDA.
Disconnect the connectors.

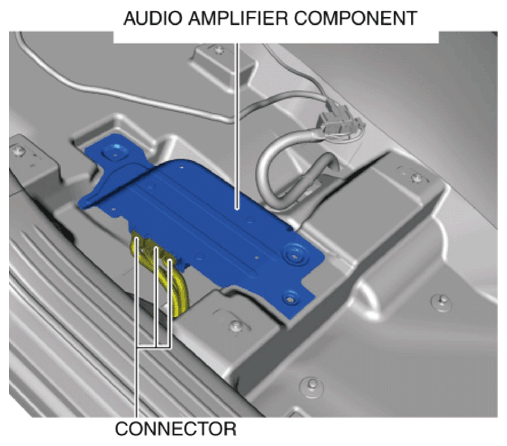

Fig 3: Identifying Audio Amplifier Component Connector
Courtesy of MAZDA.
Remove the nuts.

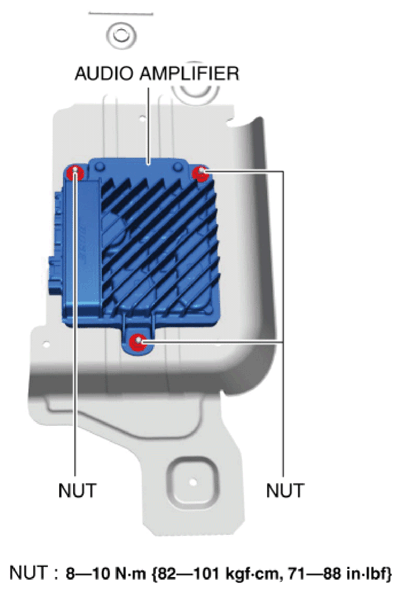

Fig 4: Identifying Audio Amplifier Nuts With Torque Specification
Courtesy of MAZDA.
Remove the audio amplifier.
Install in the reverse order of removal.
