Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Symptom Troubleshooting - Automatic Transaxle
>>
Automatic Transaxle Control System Wiring Diagram
Automatic Transaxle Control System Wiring Diagram

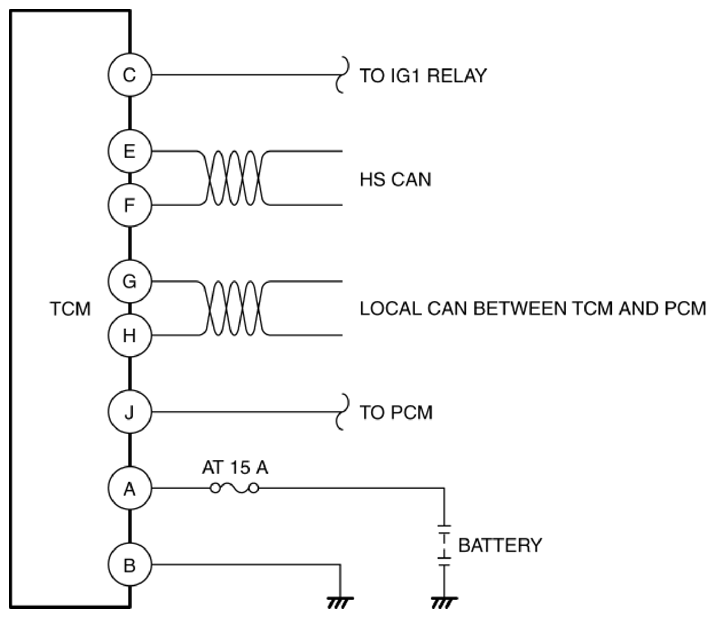

Fig 1: Automatic Transaxle Control System Wiring Diagram (GW6A-EL And GW6AX-EL)
Courtesy of MAZDA
