Automatic Transaxle Fluid (ATF) Replacement

WARNING:

Do not perform the servicing while the ATF is hot. Otherwise, it could cause severe burns or serious injury.

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Disconnect the oil pipe No. 1 from the harness bracket with the oil hose connected. (With Oil cooler No. 2)

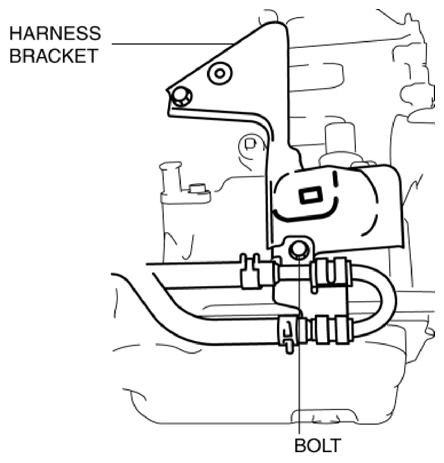

Fig 1: Identifying Harness Bracket And Bolt
Courtesy of MAZDA
Remove the dipstick securing bolt.

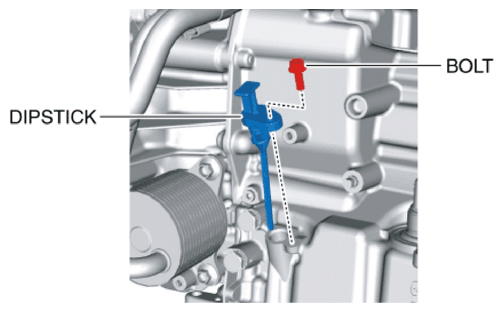

Fig 2: Identifying Dipstick And Bolt
Courtesy of MAZDA
Remove the dipstick.
Remove the drain plug and washer, and drain the ATF.

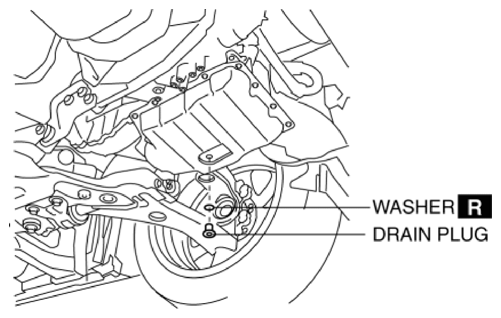

Fig 3: Identifying Drain Plug And Washer
Courtesy of MAZDA
Install a new washer and drain plug.
Tightening torque
- 30-41 N.m {3.1-4.1 kgf.m, 23-30 ft.lbf}

Add ATF from the dipstick installation hole.

NOTE:

ATF type	Resupply amount (Reference)
ATF FZ	ATF is drained from drain plug: 3.5-4.9 L {3.7-5.1 US qt, 3.1-4.3 Imp qt}

Adjust the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT [GW6A-EL, GW6AX-EL] .)
Insert the dipstick and install the securing bolt.
Tightening torque
- 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
Install the oil pipe No. 1 to the harness bracket. (With Oil cooler No. 2)

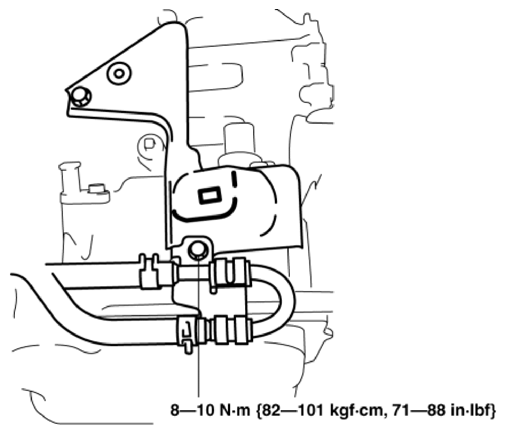

Fig 4: Identifying Harness Bracket Bolt With Torque Specification
Courtesy of MAZDA
Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
