ATF Level Inspection

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Disconnect the oil pipe No. 1 from the harness bracket with the oil hose connected. (With Oil cooler No. 2)

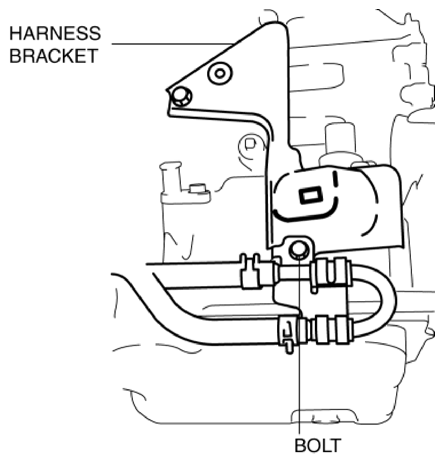

Fig 1: Identifying Harness Bracket And Bolt
Courtesy of MAZDA
Remove the dipstick securing bolt.
Connect the M-MDS to the DLC-2 and display the PID TFT.
Warm up the engine until the ATF temperature is 50 °C {122 °F} .
Remove the dipstick and wipe ATF off using a nylon cloth while leaving the engine idling.
WARNING:
- Keep hands and tools away from the cooling fan even if the cooling fan is not operating to prevent injury, or damage to the cooling fan.
- Do not touch parts which have become heated. Otherwise, it could cause severe burns or serious injury.

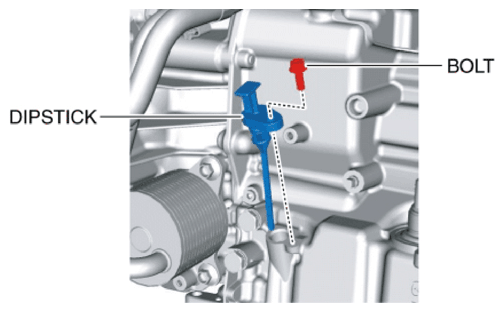

Fig 2: Identifying Dipstick And Bolt
Courtesy of MAZDA
Insert the dipstick and pull it out again.
Verify that the ATF is adhering between L and F on the dipstick.
- If ATF is not adhering between L and F on the dipstick, adjust the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT [GW6A-EL, GW6AX-EL] .)

  Fig 3: Checking ATF Adhering Between L And F On Dipstick
  Courtesy of MAZDA
NOTE:
- The ATF color is blue.
- Only use ATF FZ for the GW6A-EL, GW6AX-EL.
ATF type

ATF FZ
Insert the dipstick and install the securing bolt.
Tightening torque
- 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
Install the oil pipe No. 1 to the harness bracket. (With Oil cooler No. 2)

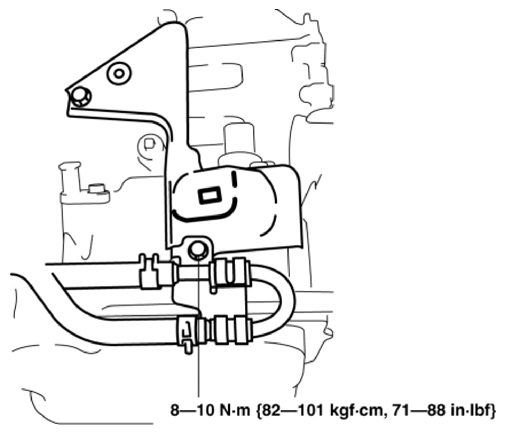

Fig 4: Identifying Harness Bracket Bolt With Torque Specification
Courtesy of MAZDA
Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
